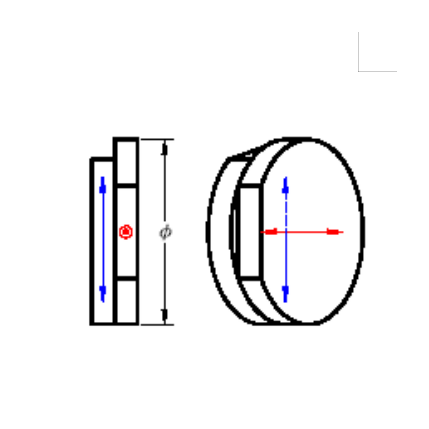

Zero-Oder Waveplate
Specification:
| Material | Crystal Quartz |
| Dimension Tolerance | +0.0/-0.1 mm |
| Optical Angle Orientation Tolerance | ±0.1° |
| Wavefront Distortion | λ/8 @632.8 nm |
| Retardation Tolerance | < λ/500 |
| Wavelength Range | 400-2100 nm |
| Parallelism | < 5 arc seconds |
| Clear Aperture | > 80% |
| Surface Quality | 20-10 scratch and dig |
| AR/AR Coating | R < 0.2% at central wavelength |
Zero-Order Waveplate Standard Products:
|
Cemented |
Optically Contacted |
||
|
Part No. |
Ф(mm) |
Part No. |
Ф(mm) |
|
TZW801 |
10.0 |
TZW804 |
10.0 |
|
TZW802 |
12.7 |
TZW805 |
12.7 |
|
TZW803 |
25.4 |
TZW806 |
25.4 |
Note: Other size, wavelength and coating are available upon request.
