True Zero-Order Waveplate
Specification:
| Material | Crystal Quartz |
| Dimension Tolerance | +0.0,-0.1 mm |
| Optical Angle Orientation Tolerance | ±0.1° |
| Wavefront Distortion | λ/8 @632.8 nm |
| Retardation Tolerance | < λ/500 |
| Wavelength Range | 400-2100 nm |
| Parallelism | < 5 arc second |
| Clear Aperture | > 80% |
| Surface Quality | 20-10 scratch and dig |
| AR/AR Coating | R < 0.2% at central wavelength |

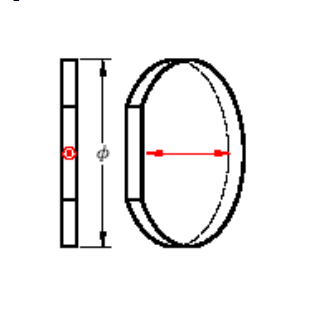

Cemented True Zero-Oder Waveplate
●Broad Spectral Bandwidth
●Wide Temperature Bandwidth
●Wide Angle Bandwidth
●Cemented by Epoxy
Cemented True Zero-Order Waveplate Standard Products:
|
Ф(mm) |
Uncoated |
Coated |
|
Part No. |
Part No. |
|
|
10.0 |
TTW101 |
TTW201 |
|
12.7 |
TTW102 |
TTW202 |
|
15.0 |
TTW103 |
TTW203 |
|
25.4 |
TTW104 |
TTW204 |
Note: Other size, wavelength and coating are available upon request.

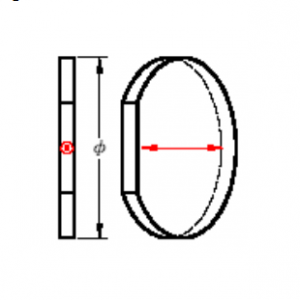

Single True Zero-Oder Waveplate
●Broad Spectral Bandwidth
●Wide Temperature Bandwidth
●Wide Angle Bandwidth
●High Damage Threshold
Single True Zero-Order Waveplate Standard Products:
|
Ф(mm) |
Uncoated |
Coated |
|
Part No. |
Part No. |
|
|
10.0 |
TSW101 |
TSW201 |
|
12.7 |
TSW102 |
TSW202 |
|
20.0 |
TSW103 |
TSW203 |
Note: Other size, wavelength and coating are available upon request.
.
