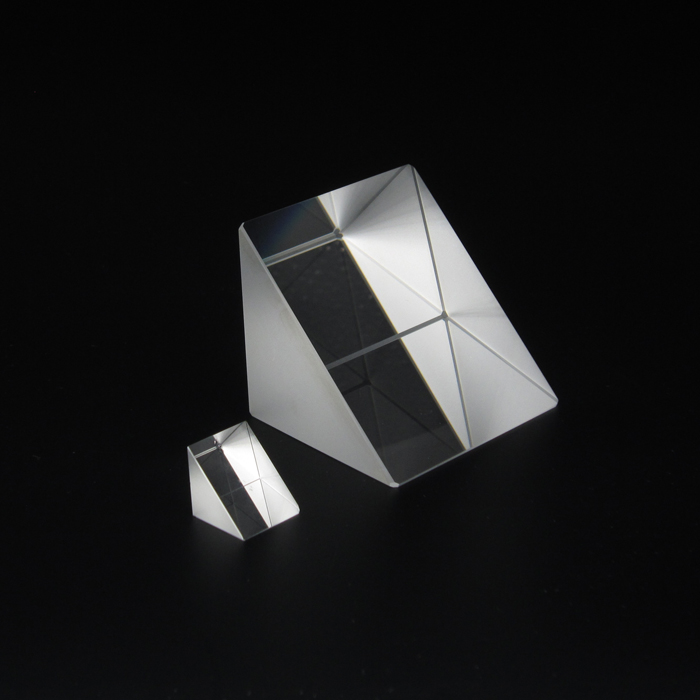

Right Angle Prism
Specification:
| Material | BK7 grade A optical glass or UV fused silica |
| Dimension Tolerance | +0.0, -0.2 mm |
| Clear Aperture | >80% |
| Surface Quality | 60-40 scratch and dig |
| 90° Deviation | 3′, 1′ or 30″ |
| Flatness | λ/2 @632.8 nm |
| Protective Bevel | 0.25 mm x 45° |
BK7 Right Angle Prism Standard Products:
|
Size (mm) |
3 min. deviation |
1 min. deviation |
30 sec. deviation |
|
Part No. |
Part No. |
Part No. |
|
|

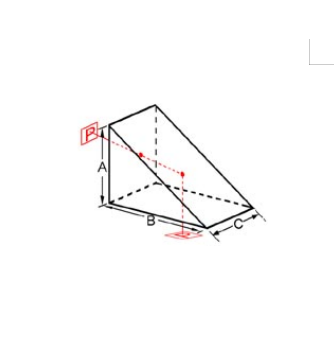

A=B=C=3.2 |
TAP101 |
TAP201 |
TAP301 |
|
A=B=C=4.0 |
TAP102 |
TAP202 |
TAP302 |
|
A=B=C=10.0 |
TAP103 |
TAP203 |
TAP303 |
|
A=B=C=12.7 |
TAP104 |
TAP204 |
TAP304 |
Note: Other sizes, material and coatings are available upon request.
