Specification:
Material | Color glass from Schott or equivalent |
Diameter Tolerance | +0.00,-0.15 mm |
Thickness Tolerance | ±0.2 mm |
Clear Aperture | >85% |
Surface Quality | 60-40 scratch and dig |
Parallelism | < 3 arc minute |
Wavefront Distortion | 1λ per 25 mm @632.8 nm |
Protective Bevel | <0.25 mm x 45° |
Coating | Uncoated |

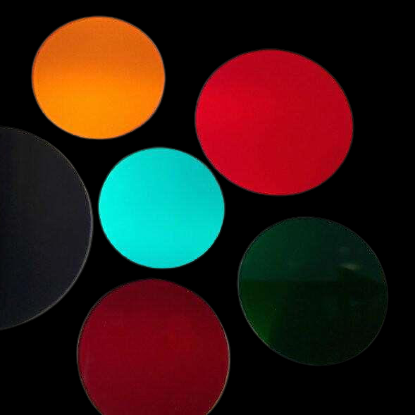

Color Glass Filter Standard Products:
Dimension (mm) |
Ф12.7×2.0 |
Ф25.4×2.0 |
12.7×12.7×2.0 |
Color |
Part No. |
Part No. |
Part No. |
Red |
TCF101 |
TCF201 |
TCF301 |
Green |
TCF102 |
TCF202 |
TCF302 |
Blue |
TCF103 |
TCF203 |
TCF303 |
Yellow |
TCF104 |
TCF204 |
TCF304 |
Magenta |
TCF105 |
TCF205 |
TCF305 |
Note: The general tolerance specifications above provide a guideline regarding manufacturing capabilities for optics ranging in size from 1-200mm. The manufacturing limits are not absolute; tighter tolerances may be possible. Part specific tolerances may vary depending on component size, shape and material.
